Features:
➢ Prints 1D, 2D, text and graphics
➢ Resolution of μm, to meet the requirements of ultra-high-precision engraving
➢ Very small text heights can be achieved—0.03mm
➢ Fastest engraving speed in the industry, two times faster than conventional products
➢ 30W high power output, higher than the average product 2.5 times
➢ The device comes with smoke detection
➢ High-power purification device
➢ Safety door design, work process closed, to prevent pollution of the working environment
➢ Optional built-in flap device
➢ Extremely long life of the laser source: 87600 hours

Spec. of CO2 Laser:
Laser Type Co2，5W/10W，Forced Air Cooling
Laser Wavelength 10.64μm
Laser Class Class 4
Laser Spot Size 0.11mm
Engraving Area 55×55mm Per Position
Type of Engraving Type of Text English uppercase, English lowercase, numbers, words,
symbols, etc.
Barcode CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC
2D Code QR Code, Micro QR Code, iQR Code, Data Matrix, GS1
Data Matrix
Graphical Data DXF、BMP、HPGL、JPEG、AI、EPS
Spec. of UV Laser:
Laser Type UV，3W/5W，Forced Air Cooling
Laser Wavelength 355nm
Laser Class Class 4
Laser Spot Size 0.04mm
Engraving Area 50×50 / 70×70mm Per Position
Type of Engraving Type of Text English uppercase, English lowercase, numbers, words,
symbols, etc.
Barcode CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC
2D Code QR Code, Micro QR Code, iQR Code, Data Matrix, GS1
Data Matrix
Graphical Data DXF、BMP、HPGL、JPEG、AI、EPS
Spec. of Fiber Laser:
Laser Type Fiber，30W，Forced Air Cooling
Laser Wavelength 1.06μm
Laser Class Class 4
Laser Spot Size 0.047mm
Engraving Area 99×99mm Per Position
Type of Engraving Type of Text English uppercase, English lowercase, numbers, words,
symbols, etc
Barcode CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC,、RSS-14
2D Code QR Code, Micro QR Code, iQR Code, Data Matrix, GS1
Data Matrix
Graphical Data DXF、BMP、HPGL、JPEG、AI、EPS



INTEON Laser marking machines specifications

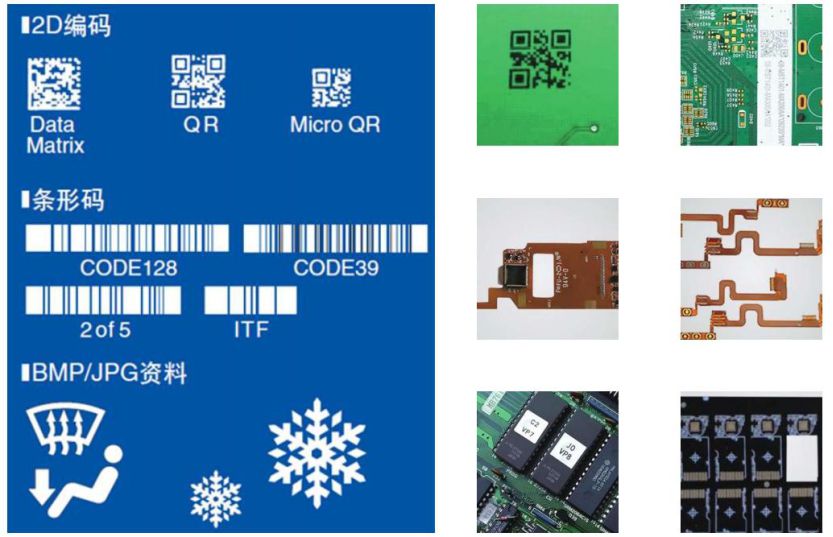

Codes Samples:





























---
