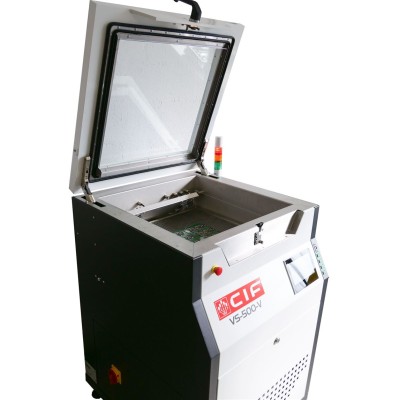

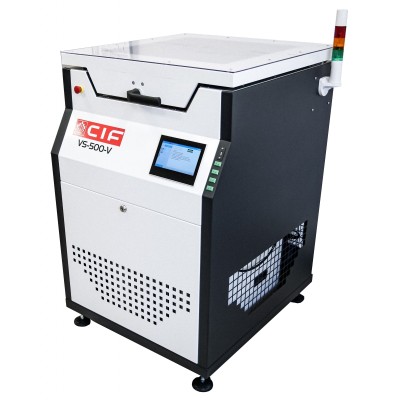

VS-500 V – Vapor Phase Reflow Oven
500 × 500 × 60 mm • Inert Atmosphere • Uniform Heating • Low Consumption
Overview
The VS-500 V is a premium vapor phase reflow oven capable of soldering even the most complex boards up to 500 × 500 × 60 mm. It delivers excellent soldering quality thanks to inert atmosphere and perfect temperature uniformity.
Key Features
- Inert atmosphere from the working fluid
- Extremely uniform temperature distribution
- No risk of handling errors during the process
- High-efficiency cooling system
- 10 temperature levels
- Unique vapor recovery system – significantly reduced fluid consumption
- Real-time reflow profile display
Why Choose the VS-500 V Vapor Phase Reflow Oven?
- Superior soldering quality in inert atmosphere
- Excellent for large and complex boards (500×500 mm)
- Low operating costs thanks to vapor recovery
- Fast ROI in mixed production
- Minimal temperature delta across the entire working area
- High reliability and repeatability
Technical Specifications
| Parameter |
Value |
| Max PCB Size |
500 × 500 × 60 mm |
| Max Load |
2 kg |
| Medium Capacity |
5 kg |
| Dimensions |
830 × 775 × 1140 mm |
| Power Consumption |
7.5 kW/h |
| Weight |
260 kg |
| Power Supply |
3 × 400 V + N + T / 50 Hz |
Source: Official Manufacturer Data • Generated May 2026
