Fully Automated Protective Coating and UV Curing Production Line
The INTEON UV Conformal Coating Line is a complete, high-efficiency protective coating system that includes an inline 5-axis coating machine, UV curing oven, and a special inspection conveyor.

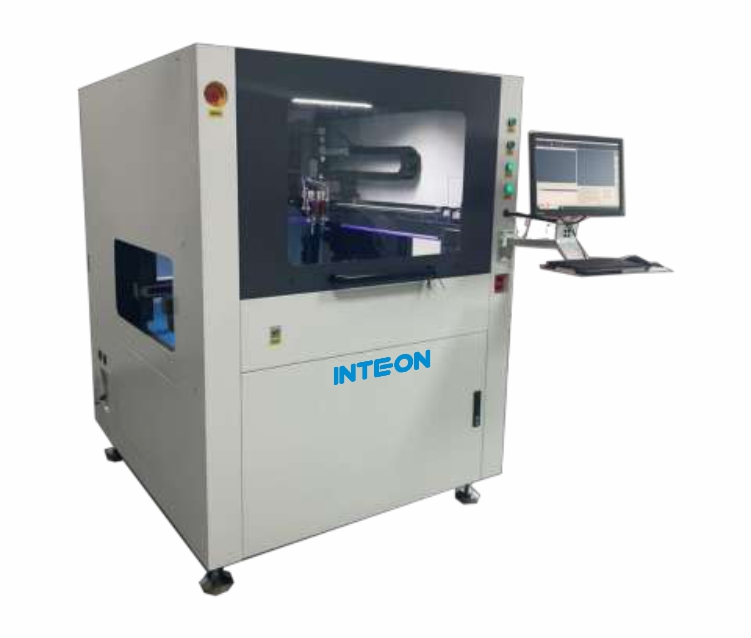

Inline 5-Axis Conformal Coating Machine
Key Features
Industrial computer + motion control card, Windows operating system
Servo motor and ball screw drive, automatic precision calibration
X, Y, Z and U axis movement – the valve body automatically tilts 35° and rotates 360°, achieving seamless spraying without blind spots
Multiple valves can be used simultaneously to increase productivity
Automatic valve soaking and automatic liquid dispensing to prevent nozzle clogging
Online track design with SMEMA interface
Optional CCD visual positioning and glue quantity monitoring

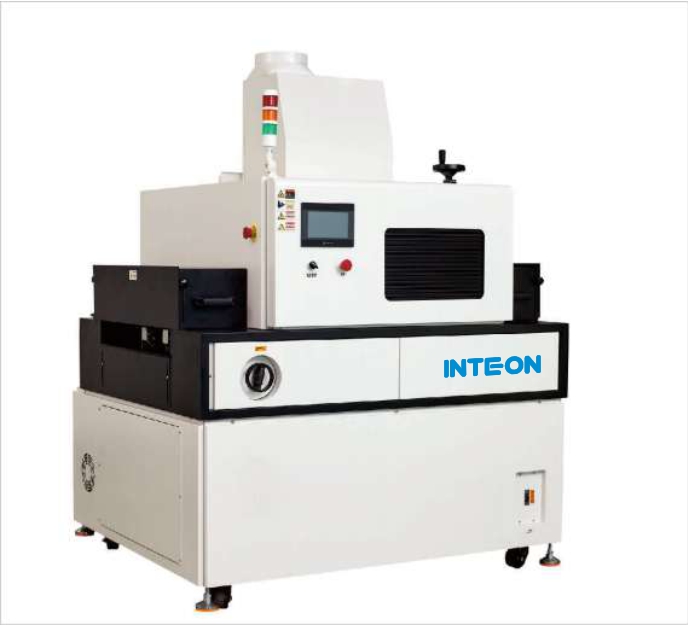

UV Curing Oven UV-2000
Key Features
UV mercury lamp 5kW × 2 pcs, arc length 500 mm
Flexible lamp selection, independent control
Main wavelength: 365 nm
Average lifespan approx. 800 hours
Effective irradiation width: 420 mm
Fan delay for lamp cooling

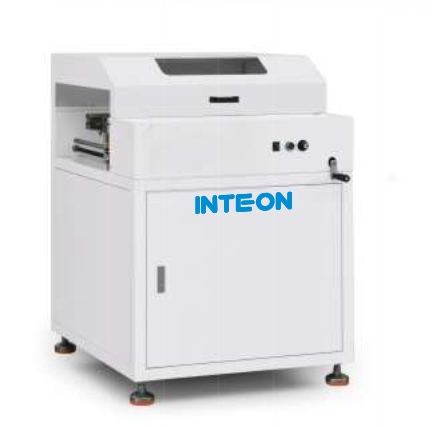

UV Inspection Conveyor
Fully sheet metal structure with electrostatic powder coating, weighted design for stability. Dark-tinted acrylic window for UV protection. LED UV lamps for visual inspection of coating quality.
