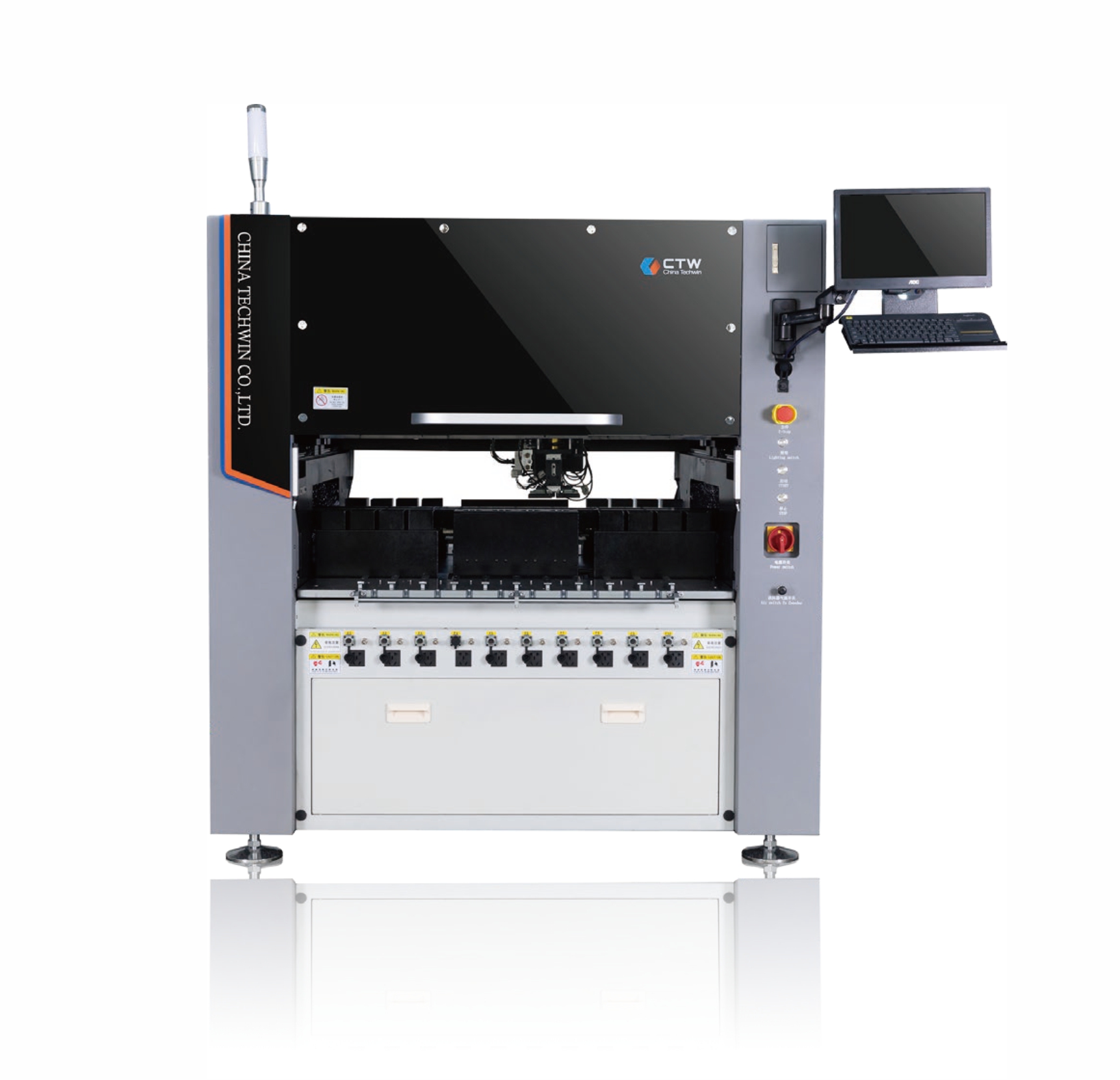

TechWin CAM-30 Multi-Function Hybrid THT Insertion Machine

The TechWin CAM-30 is a multi-function automatic insertion machine particularly suitable for small and medium batch production with many different types of odd-form components. It features 2 grippers and large feeder capacity, making it ideal for flexible manufacturing needs.

Key Features

• Y-axis dual-drive gantry – faster speed and higher precision
• Modular circuits – faster troubleshooting
• Jam / material shortage alarm
• Automatic insertion hole searching and adjustable speed
• Intelligent avoidance and slow drop function
• Insertion force alarm
• Automatic material replenishment and bad material rejection
• Standard tape cutting function (5S)
• Mark visual localization and simultaneous pickup/photo
• Multi-privilege system and visually assisted programming
• Automatic production data statistics

Technical Specifications

Our Advantages

• Premium components (THK screws, rails, SMC pneumatics, Panasonic servo, etc.)
• Long-life cabling
• Advanced vision module with laser + CCD flying camera
• Unique algorithms for DIP components
• Special functions for different industries
• High precision and CPK value
• Material monitoring system – one person can operate multiple machines

Downloads

TechWin CAM-30 Technical Catalog (PDF)
