Borey W2-F SMT pick&place machine

BOREY SMT-W2-F – High-Speed 6-Head SMT Pick and Place Machine

10,000 CPH • 6 Heads • Flight Vision System • Best Value for Money

Overview

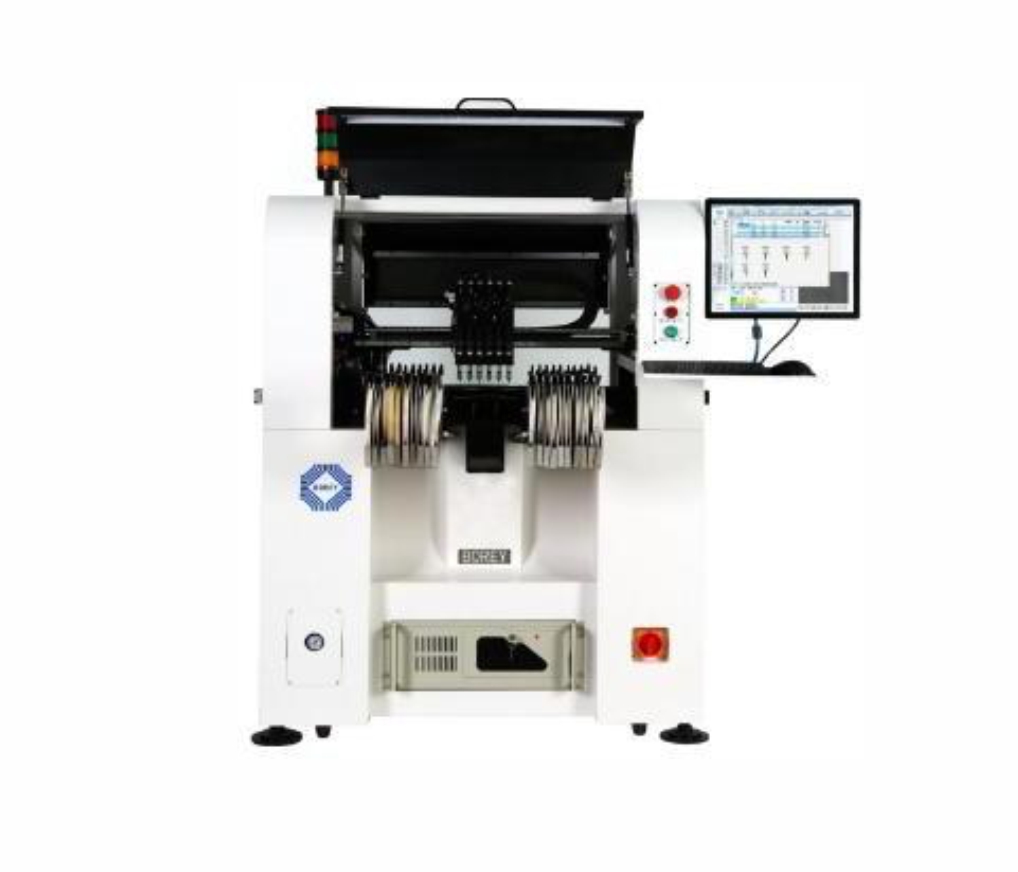

BOREY SMT-W2-F 6-head SMT pick and place machine

The BOREY SMT-W2-F is a high-speed, compact 6-head SMT pick-and-place machine designed for efficient prototyping and medium-volume production. It combines aviation-grade aluminum frame, Panasonic servo motors, and advanced flight camera recognition system.

Key Features

Flight Photo Recognition System – High-speed non-stop component identification
6 Mounting Heads – Simultaneous pickup for maximum efficiency
Panasonic A6 Servo Motors + high-precision ball screws and linear guides – 0.01 mm positioning accuracy
Integrated Flying Shot IC Recognition – 0.1 second IC identification (China’s first continuous fly-shooting technology)
56 Feeder Positions – Supports 8mm, 12/16/24mm tapes and vibration feeders
Automatic PCB Conveyor – Ready for in-line production
BOREY 2018 Upgraded Software – Easy import of Pick & Place / Protel files, offline programming

Why Choose BOREY SMT-W2-F?

Excellent price/performance ratio in the 6-head category
High accuracy and reliable flight vision system
Ideal for prototyping, small-batch and medium-volume production
Strong software support and easy operation

Technical Specifications

Parameter	Specification
Number of Heads	6 Heads
Max PCB Size	330 × 250 mm
Positioning Accuracy	0.01 mm
Max Placement Speed	10,000 CPH
Average Placement Speed	8,000 CPH
Component Range	0402 ~ 25mm+ (0402, 0603, 0805, SOT, SOP, QFP, BGA, etc.)
Feeder Capacity	56 (8mm standard) + 12/16/24mm + vibration feeder
Z-Axis Travel	15 mm
Rotation	0° – 360° (any angle)
Power Supply	220V / 50Hz, ~1000W
Machine Dimensions	1150 × 1100 × 1450 mm
Machine Weight	Approx. 450 kg
